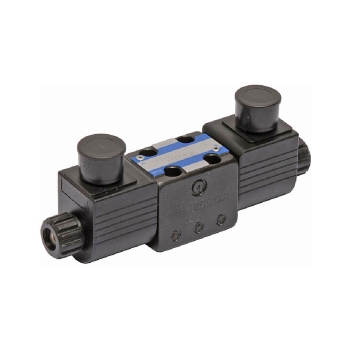

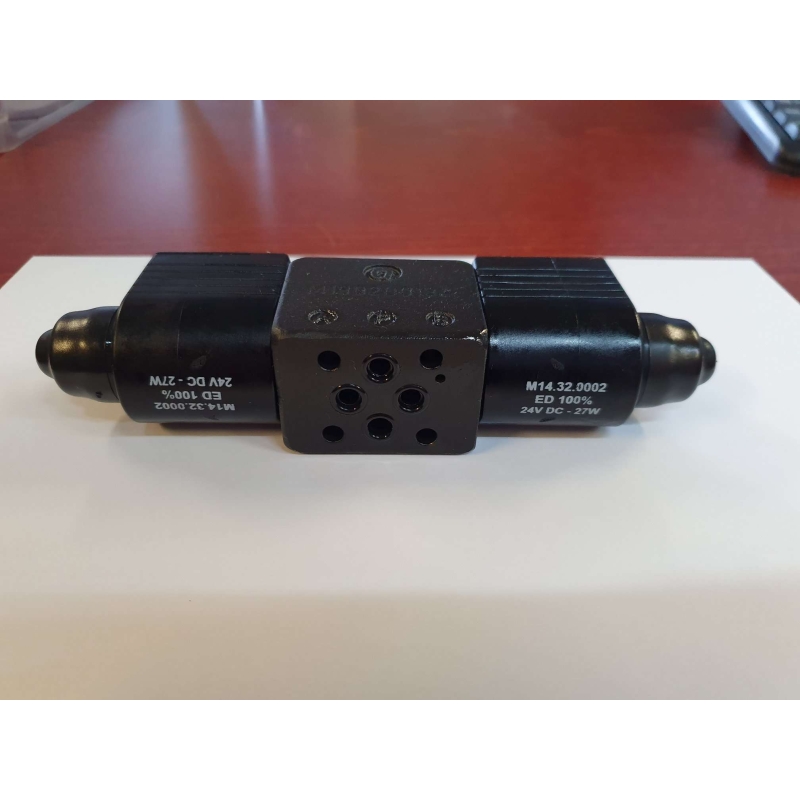

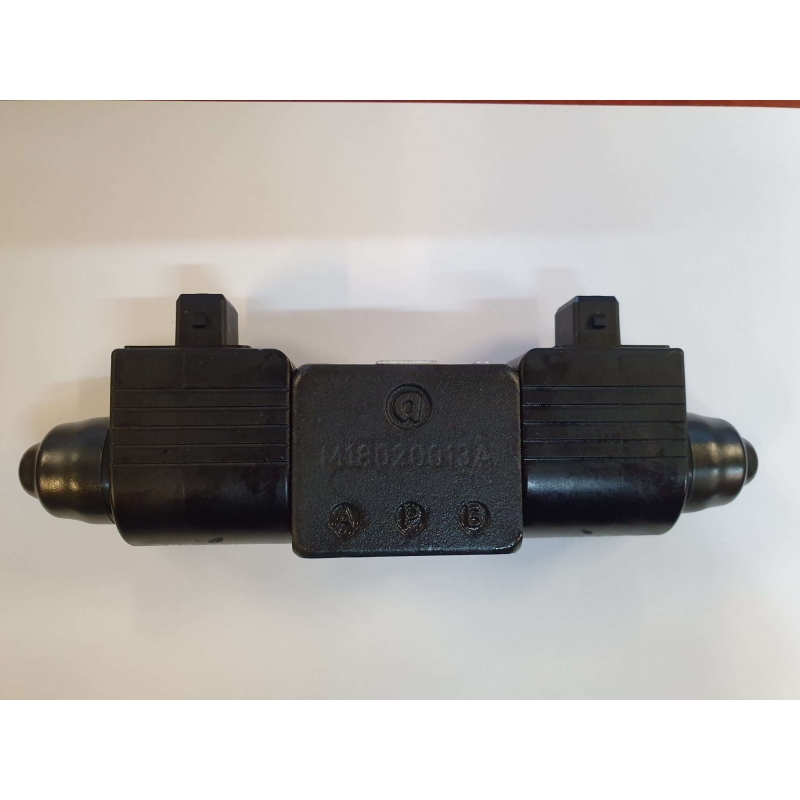

Directional control solenoid operated valves Cetop 2/NG4

Max. pressure ports P/A/B 250 bar
Max pressure port T (dynamic) 250 bar
Max flow 20 l/min
Max excitation frequency 3 Hz
Duty cycle 100% ED
Fluid viscosity 10 ÷ 500 mm2
/s
Fluid temperature -25°C ÷ 75°C
Ambient temperature -25°C ÷ 60°C
Max contamination level class 10 in accordance with
NAS 1638 with filter ß25≥75
Weight with one DC solenoid 0,88 Kg
Weight with two DC solenoids 1,1 Kg
